Electrolytic thickness gauge (without computer)

Equipment specifications: 3S-4

Equipment introduction and functional characteristics: 3S-4 electrolytic thickness gauge is a metal coating electrolytic thickness gauge combined with the most advanced technology at home and abroad. It has the characteristics of advanced structure, stable and reliable performance, and complete functions. Using this instrument can guarantee the product quality of the user unit and prevent the waste of raw materials and energy. Using this instrument can also help users find the best electroplating process for different requirements. It is the preferred instrument for finished products and electroplating plants.

Main functions and features:

1. This product uses US imported chips to process data, with ultra-high-speed serial port, high-speed A / D, precision, compatibility, anti-interference, long life, technology

Advantages such as surgical front end.

2. The LCD display is switched between Chinese and English interface. The specific display has the advantages of high quality, digital interface, small size, light weight and low power consumption.

3. The thermal printer is used permanently without replacing the ribbon. Print test report in Chinese and English with micro printing interface, print plating type, thickness,

Tester, date, internal clock perpetual calendar, no need to set each time.

4. Automatic pause measurement prompts to replace electrolyte. To reduce measurement errors.

5. Automatically calculate the average value. Below 10 microns are three decimal places with an accuracy of 1/1000.

6. Measurable multi-layer plating such as: Cr / Ni / Cu / plastic, the report can print the results at one time, without decomposition and printing (unique)

7. Adopt authoritative U.S. imported standard film, calibration and calibration to achieve the ideal measurement error value. Adjustable conductivity reduces errors.

8. Adjust the potential difference at the end point to suit the best potential between the coating and the substrate.

9. It can measure more than 70 kinds of metal coating substrate combinations, can measure the coating on flat and curved surfaces, and can measure small parts, wires, and linear parts

10. Adjustable plating speed 0.3-40 μm / min

11. Vacuum squeezing type air pump circulating stirring, according to the coating layer, the stirring force can be adjusted to achieve the best state of dissolution.

12. The anti-corrosion alloy stainless steel of the electrolytic cup is not easy to corrode and aging.

13. Adjustable constant current reaches the best value of electrolysis efficiency.

14. The operation interface function matrix buttons are intuitive and convenient to operate and measure, and the input can be completed directly.

15. The matrix button adopts imported Omron or NKK and has a life span of more than 10 million times.

16. The thickness gauge host uses ultra-high-speed USB interface transmission to be compatible with various notebook computers to achieve the best operation display. The software automatically captures the precise coating thickness curve with the machine. This model can measure the result of the dissolved amount. It can be connected with a computer, and the trend of the curve can be observed. As a result, an office document can be generated and permanently saved, and the report can be printed on A4 paper.

Technical Parameters:

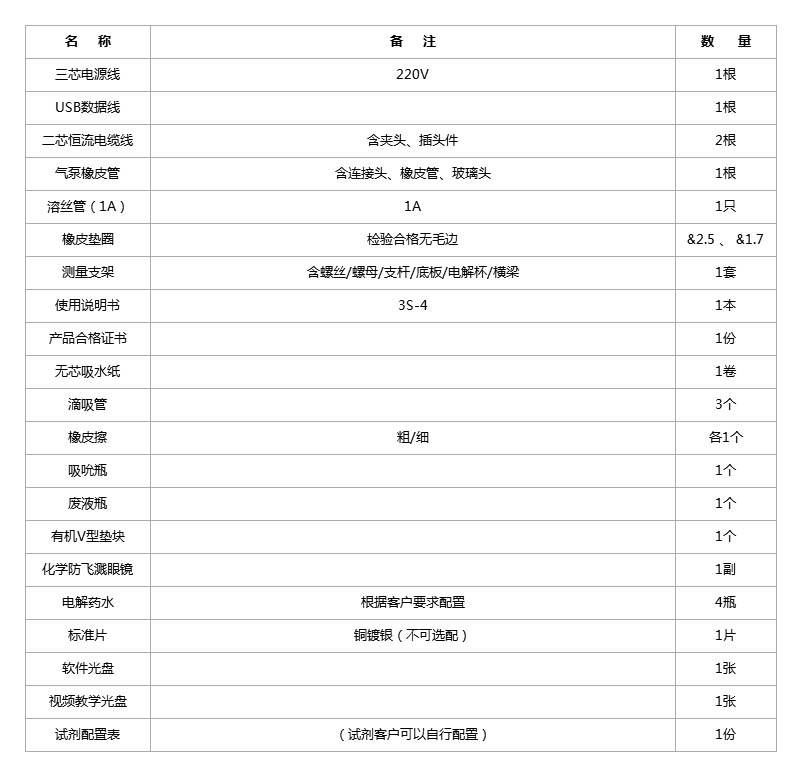

产品配置清单：
