技术参数及配置清单
说明 | 名称 | 规格型号 | 数量 | |
主机 | 主机 | DX-200Pro测量主机 | 1 | |
图像传感器 | 高清CCD 2000万像素 | 1 | ||
测量范围 | 200mm*150mm | 1 | ||
倍率 | 0.088 X | 1 | ||
显示单位 | 0.1μm | 1 | ||
测量精度 | ±5 + L/100 μm | 1 | ||
相机接口 | Gige千兆以太网(传输率:1G/S) | 1 | ||
镜头 | 双侧远心镜头 | 1 | ||
软件版本 | Choxion一键式专用软件 | 1 | ||
照明系统 | 透射系统 | 远心透光照射(颜色:绿色) | 1 | |
落射系统 | 可程控LED (颜色:白色) | 1 | ||
同轴光源 | 同轴光落射（颜色白色） | 1 | ||
辅助光源（选购） | 低角度光源 | 可上下移动式光源（颜色：白色） | 1 | |
电源电压 | AC100~240V 50/60Hz | 1 | ||
相机电压 | 输出/ 额定负荷 DC24V0.6A以下 | 1 | ||
软件系统 | 基本软件 | CHOXIONPRO3.0一键式专用软件 | 1 | |
USB 加密狗 | 1 | |||
配置清单（标准）
货品名称 | 型 号 | 数量 |
主机 | DX-200Pro | 1 |
主机主要部件 | 载物台 | 1 |
载物器具 | 机台玻璃 | 1 |
控制箱 | 可程数字光源系统（内置） | 1 |
计算机 | 品牌计算机+19“液晶显示器 | 1 |
镜头 | 双侧远心镜头 | 1 |
摄像机 | 高清CCD 2000万像素 | 1 |
软件 | 一键式专用软件（加密狗） | 1 |
其他配置 | 光学网格玻璃 | 1 |
资料 | 用户说明书（光盘） | 1 |
上光源 | 环形光源 | 1 |
下光源 | 平行远心光源 | 1 |
辅助光源（选购） | 同轴光落射(颜色:白色) | 1 |
包装箱 | 闪测仪主机专用铝制箱 | 1 |
软件功能介绍
基本测量功能 | 点、线、圆、多点线、多点圆、自动圆、样条曲线、弧、多段圆、自动R角、轮廓扫描 |
标注功能 | 对齐标注、垂直标注、角度标注、半径/直径标注、面积标注、螺纹中径 |
形位公差 | 直线度、真圆度、对称度、轮廓度等 |
虚拟构造 | 中心线、平分线、切点、圆线切点、圆圆中心、线线中心、*高点、*低点 |
参数设置 | 字体、颜色、识别模式、公差大小、操作权限 |
报表功能 | SPC分析报告（CPK，CA，PPK，CP，PP值，制程能力分析，X管制图，R管制图） |
软件定制 | CAD导入轮廓曲线分析，自动化管理链接，APP管理应用 |
检测数量 | 999个数据/秒 |
模板数量 | 不限 |
驱动模式 | 可程控电机 |
其他要求
名称 | 说明 | 地点 | 人数 | 天数 |
培训 | 提供测量机应用操作培训 | 客户现场 | 2 | 1 |
安装 | 包括测量机的安装、调试以及测量机安装现场的*终验收 | |||
保修期 | 测量机在买方调试验收合格后，免费保修12个月 | |||
Technical Description

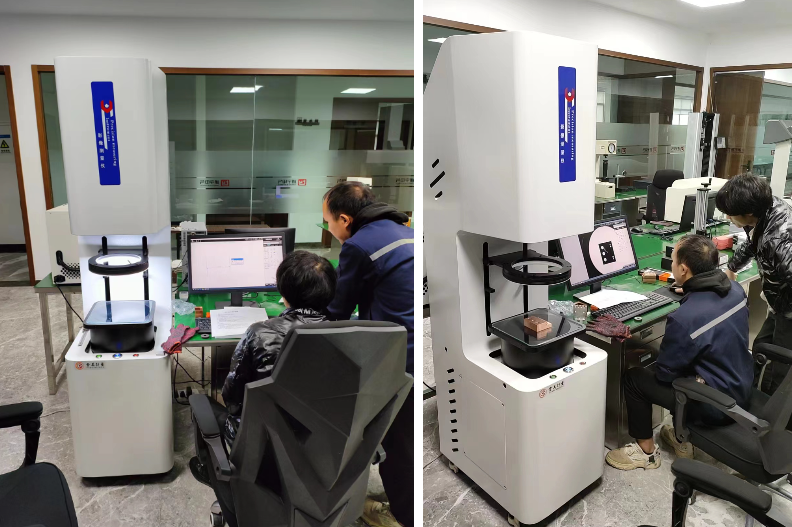

Host Machine:
The fast flash tester system is a measurement instrument with a very good performance to price ratio for similar products. It fills the gap between traditional precision measuring instruments and measuring machines. Especially, it can meet the requirements of industrial production for high-performance measurement products.
Adopting high-precision linear guide rails to reduce workbench movement errors; Seamless connection of images is achieved through the mobile photography method of the workbench. During the batch measurement process, by capturing single screen field of view product images, different images can be perfectly displaced and concatenated.
The accuracy of this measuring machine can reach micrometers, and surprisingly, the operation is very simple, even if the operator is not familiar with the measurement operation. The measurement software used by this measuring machine, Zhuoxin Intelligent Professional One Button Software, has a user-friendly interface operation mode, and the operator can measure complex workpieces after using it for a few hours.
Main features:
1) Automatic image registration function, without the need for positioning workpieces or fixtures, allows products to be placed randomly, achieving automatic recognition and measurement; Can simultaneously identify multiple measuring workpieces and perform measurements, outputting results;
2) The image sensor adopts an imported high-definition 20 million pixel CCD, paired with a Gige Gigabit Ethernet card (transmission rate: 1G/S), which ensures clear imaging and fine image quality;
3) Adopting imported bilateral telecentric lenses, combined with parallel telecentric transmission light (transmission system), programmable four zone annular shadowless drop light (drop light system), coaxial drop light, and low angle shadowless drop light (optional light source), to ensure the authenticity, stability, and observability of the product imaging required for measurement, making the measurement data very close to the true value, and the repeated measurement data is also very stable, Ensure that operators do not doubt the measurement results due to significant differences in data.
4) The instrument controller produced using new technology (divided into two types: internal and external) can be directly paired with new intelligent software, making instrument lighting control, workbench movement control, and camera exposure control very simple and easy to operate.
5) The internal framework and workbench of the entire machine are made of aviation aluminum profiles to ensure the stability of the instrument; The outer cover adopts ABS plastic shell, which is naturally non-toxic, clean and beautiful.
6) Adopting Choxion professional one click measurement software with powerful functions and intuitive operation, coupled with testing and adjustment by domestic software engineers, the software operation is more user-friendly; And we promise to make corresponding software modifications according to the measurement requirements proposed by the customer.
Performance Specifications:
行程范围(mm) | 外形尺寸(mm) | 主机重量(Kg) | 被测工件*大重量(Kg) | ||||
X | Y | Z | Lx | Ly | Lz | 4 | |
200 | 150 | 60 | 340 | 400 | 768 | ||
测量误差 (mm) | 重复性 (mm) | ||||||
±5 + L/100 | ±3.0 | ||||||
环境条件要求 Environment Specifications:
测量机室温度要求： | |
房间温度 (温控间) | 20 ± 5℃ |
温度梯度(时间) | 5 °C /24h |
测量机室湿度要求： | |
空气相对湿度 | 25 - 75％ |
电源要求： | |
电压 | AC100~240V 50/60Hz |
频率 | 50/60 Hz |
振动要求： | 测量机不能放置在重型机床设备附近，或基础不牢固的地面。 |
